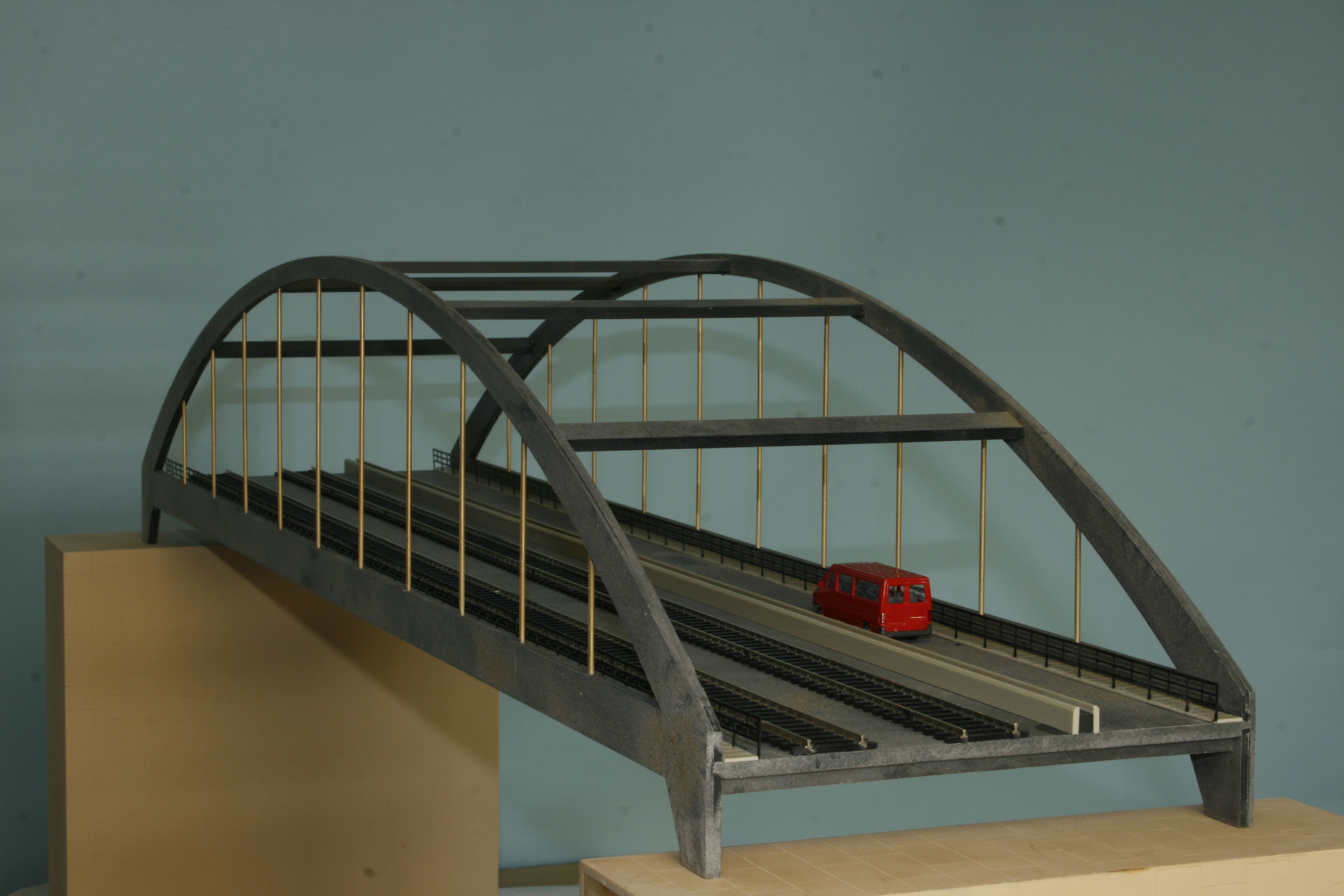

Tied Steel Arch Bridge 1092 mm 3 tracks

Dimension: 1092 x 191 x 216 mm, L x W x H.

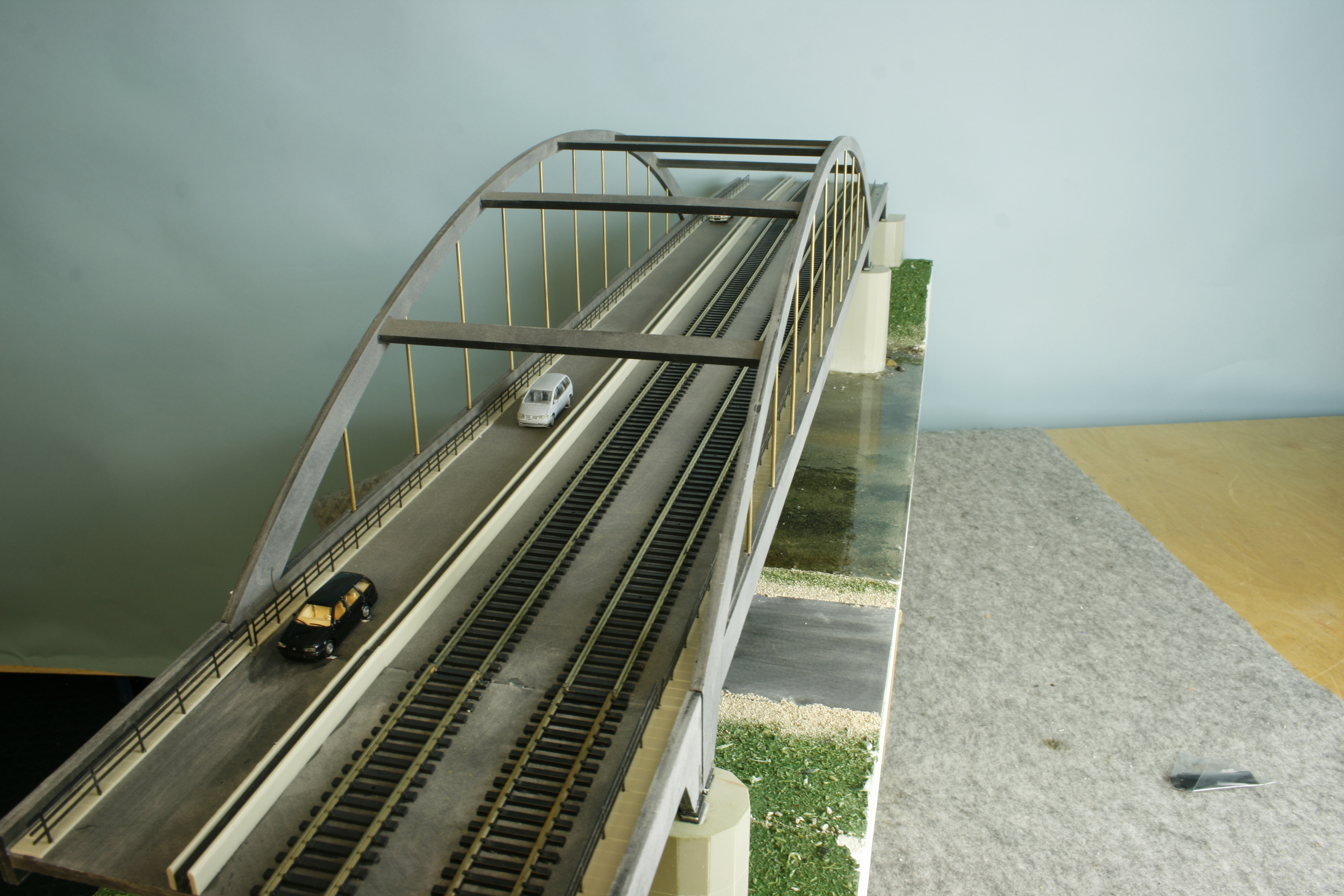

New to the H0 program the modern Tied Steel Arch Bridge. It enables 3-track traffic with catenary wires. A included seperating wall enables combined road and rail transport.
The model can be also used as a pure road bridge. The 5 mm thick floor plate enables the use of a car system.
The clear width is 181 mm minus 2 x 11 mm for the sidewalks .The clear height on the bridge is 112 mm from the top edge of the bridge ground. The bridge can be extended by the addition of the streamflow bridges (type no. 56 764) to adjust the area well. Pillar and bridge heads are available in different heights.
3- colored kit from solid polystirene plates, CNC-milled. The supporting cables of the arc are made of brass. The kit contains a detailed, illustrated instructions and 2 pairs of roller bearings.
The shown bridge heads  No. 56 853 and pillar type. No 56 850 are not included in the kit.
